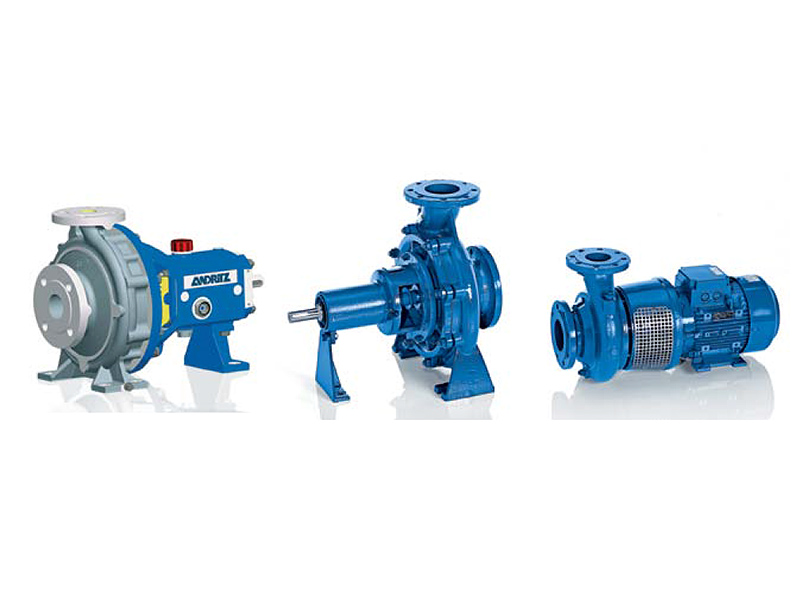

Single-Stage Centrifugal Pumps, End Suction Pumps

Design: Single-stage centrifugal pumps – main dimensions and performance grid also available according to EN 733, ISO 2858 and 5193
Media: Clean, slightly contaminated, and aggressive liquids up to a viscosity of 150 mm²/s without abrasive and solids content
Special benefits: Easy to maintain due to its modular design; impeller unit can be removed from the installed pump casing; low energy consumption
Materials: Cast iron, bronze, stainless steel
Shaft seal: Gland packing, mechanical seal
Impeller design: Closed impeller, radial impeller, vortex impeller, and two-channel impeller available in some cases
Applications: Water, pulp and paper, sugar, thermal power, small hydropower, other industries

DN: 65 to 600
Q: up to 6,000 m3/h
H: up to 160
